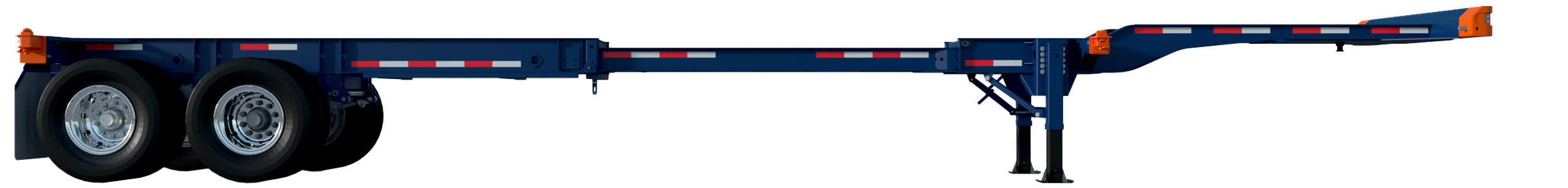

40-45 Extendable Chassis
Extendable. Flexible.
Reefer Ready.
Easily adapt between 40’ and 45’ containers while supporting refrigerated cargo with an undermount genset. Built to meet modern transport needs without added complexity.
Pneumatic Retractable Frame
Landing Gear
PSI Tire Inflation System
OEM Radial Tubeless Tires
Solar Powered GPS
Piloted Stud Wheel
Features
Precision Engineering: 40-45 Extendable Chassis Details
Trend’s 40-45 Extendable chassis provides the adaptability today’s fleets demand, with a rugged steel frame, extendable slider system, and bolt-on components that simplify maintenance. Built to handle either 40’ or 45’ loaded containers, this chassis helps reduce fleet complexity while enhancing load security and compliance.
With high-quality finishes and precision assembly, it’s designed for smooth operation and long-term value. Extendable, durable, and DOT-compliant—this chassis is ready to streamline your yard and increase daily productivity.
Fabricated Steel Slider Beam
LED Lighting Package
BoIt-On ICC Bumper
Specifications
Built with Purpose. Designed for Performance.
Measurements
| Overall Length | 44′ 8-17/64″ Extended 40′ 11-27/32″ Retracted |
| Overall Width | 96″ |
| Fifth Wheel Height | 48″ ± 1″ |
| Rear Deck Height | 48″ ± 1″ |
| Tare Weight | 7,600 LBS ± 2% |
| GVWR | 74,500 LBS |
Structure
| Goosneck Material | Hot Rolled ASTM A572 GR50 / SM490YA Sheets |
| Main Beam Material | Hot Rolled 12” – 19 lbs/ft – ASTM A992 GR50 |
| Slider System | Hot Rolled 8” – 18 lbs/ft – ASTM A992 GR50 |
| Goosneck Beam | 5-1/4” high x 4” wide fabricated I beam |
| Cross Member | 3/16” thick x 3” wide x 9” high channel supported with gussets |
| Front Bolster | ¼” thick 8” wide x 10” high with taper for container gathering |
| Rear Bolster | ¼” thick C channel with 5/16” top plate and non-retractable twist locks |
| Rear Bumper | 4” x 4” bolt-on ICC bumper |
| Slider Locks | 24/24 locking chambers operated through 3rd glad hand |
Functional Accessories
| Kingpin | JOST 2” AAR approved welded type |
| Landing Gear | JOST A440 Magnum – 17” travel, 2-speed with T foot |
Rims & Tires
| Rims | Asia Wheels 8.25 x 22.5 white powder-coated steel Option: Alloy rims |
| Tires | CR915 11R 22.5, 14 PR tires |
Chassis Coating System
| Primer | 2 mils zinc-enriched primer from Sherwin-Williams |
| Top Coat | 2 mils PU top coat in color of choice from Sherwin-Williams |
Brake System
| ABS System | Knorr Bremse 2S/1M ABS |
| Brake Actuators | Haldex 30/30 SB |
| Auto Slacks | Haldex |
Running Gears
| Axles | SAF round axles, 22,500 lbs capacity, 71.5″ track, 16.5 x 7″ Q brakes |
| Hubs and Drum | 10-stud hub piloted, outboard cast steel drums |
| Suspension | Hutch 9700 series, 49″ spacing, 354 high-arch springs |
Electrical System
| Harnesses | Phillips 12-volt modular harness |
| Lights | Phillips Permalite LED marker lamps and 4″ anti-theft stop/turn tail lamps |
See How Trend’s 40-45 Extendable Chassis Can Advance Your Fleet Efficiency
With quick turnaround and expert support guaranteed.
FAQs
Frequently Asked Questions About the 40-45 Extendable Chassis
What container sizes does the Extendable chassis carry?
It is designed to transport either one 40’ or one 45’ loaded ISO container with a single, flexible configuration.
Is it suitable for mixed container yards?
Yes, this chassis is ideal for fleets handling both 40’ and 45’ containers, reducing the need for separate equipment.
Can the chassis be customized for our operation?
Absolutely—bolt-on features like twist locks, bumpers, and landing gear brackets allow for straightforward customization.
How does the extension mechanism work?
The extendable slider beam can retract or extend to securely position containers at either 40′ or 45′, locked by spring brake actuators controlled via a 3rd glad hand.
Does the chassis include automatic tire pressure control?
Yes, the PSI – ATIS system ensures tire pressure is automatically regulated, improving safety and performance.
Is this unit regulation-compliant?
Yes, it meets or exceeds all TOFC, AAR, DOT, FMVSS, ISO, SAE, and TTMA regulations.
