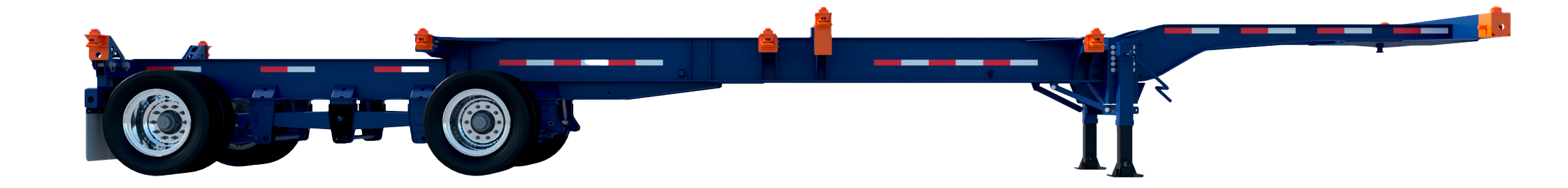

20-40 Spread Axle Trailers & Chassis
Greater Payload Flexibility, Smarter Toll Savings
Avoid payload limitations in the 20’ position while minimizing third axle tolls. This chassis is a practical solution engineered for optimized efficiency and real-world savings.
Flip-Up Twist Locks
White Powder-Coated Rims
PSI Tire Inflation System
Pneumatic Retractable Frame
Piloted Stud Wheel
OEM Radial Tubeless Tires
Landing Gear
Solar Powered GPS
109″ Spread Tandem Axles
Gooseneck
Features
Precision Engineering: 20-40 Spread Axle Chassis Details
Trend’s 20-40 Spread Axle chassis is designed for premium container transport where load balance and regulatory compliance are critical. Its extended axle spacing enhances weight distribution and ride quality, while its structural steel frame and bolt-on components offer ruggedness and serviceability.
With retractable twist locks, a reliable slider system, and advanced coatings, this chassis delivers long-lasting performance across your most demanding operations.
Fabricated Steel Slider Beam
LED Lighting Package
Bolt-On ICC Bumper
Specifications
Engineered for Demanding Loads. Built to Perform.
Measurements
| Overall Length | 41′ 2-1/2″ Extended 31′ 11″ Retracted |
| Overall Width | 96″ |
| Fifth Wheel Height | 48″ ± 1″ |
| Rear Deck Height | 48″ ± 1″ |
| Tare Weight | 9,500 LBS ± 2% |
| GVWR | 57,650 LBS for 20′ Loaded 64,250 LBS for 40′ Loaded |
Structure
| Chassis Material | Hot Rolled GR 80 and SM490YA |
| Main Beam Material | 16” x 5” GR 80 fabricated I beam, 6-11/32” high GR 80 gooseneck beam |
| Slider System | 14-3/4” high x 5” wide fabricated I beam |
| Slider Locks | 2 – 24/24 locking pin SB actuators via 3rd glad hand |
| Cross Member | 3/16” thick channel with gussets |
| Intermediate Bolsters | 5/16” thick 5” x 5” with retractable twist locks |
| Rear Bolster | 6-5/8” high x 4” wide with flip-up retractable twist locks |
| Rear Bumper | 4” x 4” bolt-on ICC bumper |
Functional Accessories
| Kingpin | JOST 2” AAR approved welded type |
| Landing Gear | JOST A440 Magnum – 17” travel, 2-speed with T foot |
Rims & Tires
| Rims | Asia Wheels 8.25 x 22.5 white powder coated steel wheels Option: Alloy rims |
| Tires | Westlake CR976A 255/70 R 22.5, 16 PR tires |
Chassis Coating System
| Surface Preparation | SA 2.5 shot blasted |
| Primer | 2 mils of zinc enriched primer from Sherwin Williams |
| Top Coat | 2 mils of PU top coat in color of choice from Sherwin Williams |
Brake System
| ABS System | 4S/2M ABS |
| Brake Actuators | Haldex 30/30 SB |
| Auto Slacks | Haldex |
Running Gears
| Axles | SAF round axles, 22,500 lbs capacity, 71.5” track, 16.5 x 7” Q brakes |
| Hubs and Drum | 10-stud hub piloted, outboard cast steel drums |
| Suspension | Hutch 109” spread tandem with high-arch 365-00 springs |
Electrical System
| Harnesses | Phillips 12 volt modular harness |
| Lights | Phillips Permalite LED marker lamps and 4″ anti-theft stop/turn tail lamps |
See How Trend’s 20-40 Spread Chassis Can Advance Your Fleet Efficiency
With quick turnaround and expert support guaranteed.
FAQs
Frequently Asked Questions About the 20-40 Spread Chassis
What container sizes does the Spread Axle chassis support?
It is built to carry one 20’ loaded, one 40’ loaded, or two 20’ empty ISO containers.
Why choose a Spread Axle over a standard tandem axle?
The 109″ axle spread helps improve weight distribution across axles, which can enhance braking stability and comply with bridge law requirements in certain regions.
Can this chassis be used for long-haul applications?
Yes, it’s well-suited for long-distance hauling with high load reliability and durable suspension.
Is the chassis equipped with automatic tire inflation?
Yes, it includes a PSI – ATIS system that monitors and maintains proper tire pressure automatically.
Is it customizable for fleet needs?
Yes, bolt-on components like twist locks, bumpers, and landing gear brackets allow for easy customization and serviceability.
Is the Spread Axle chassis compliant with U.S. transportation regulations?
Absolutely. It meets or exceeds TOFC, AAR, DOT, FMVSS, ISO, SAE, and TTMA standards.
